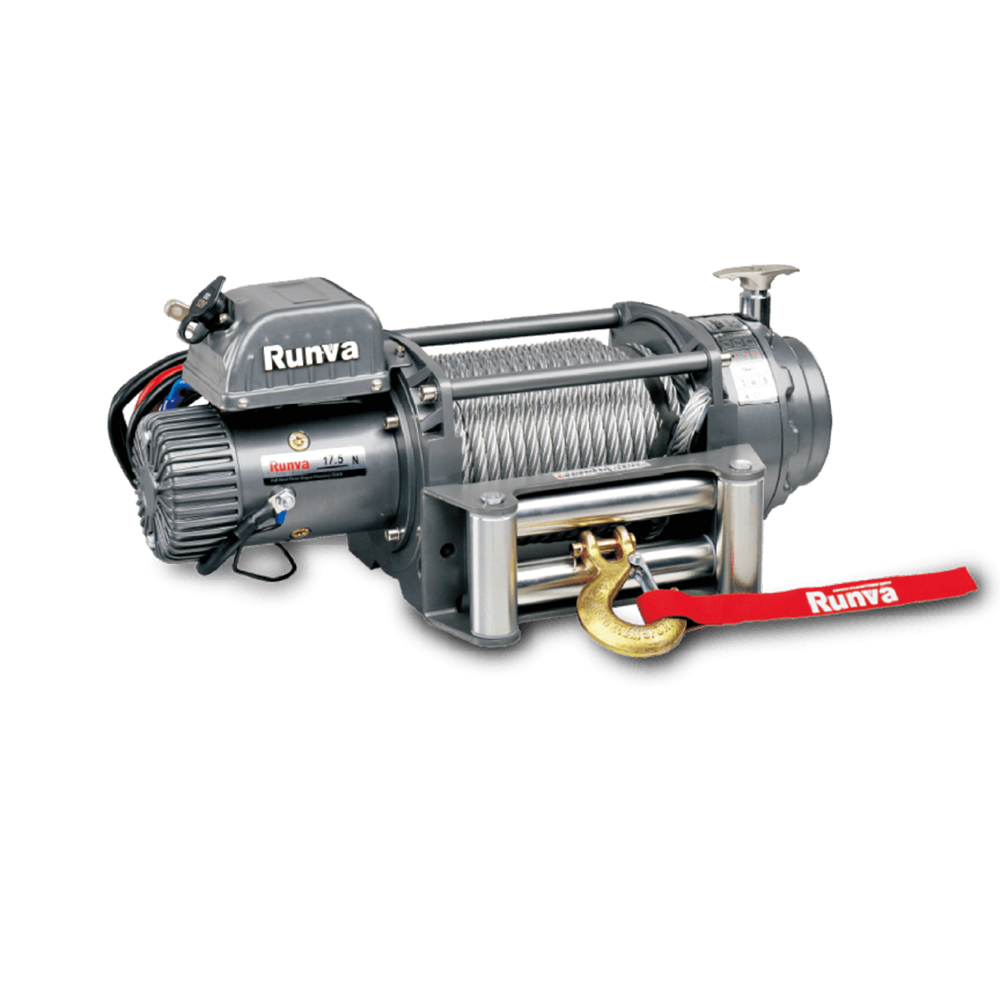

Runva EWN20000 electric winch 24V 20000 lbs with steel cable

Description

Runva EWN20000 is a heavy-duty 24V winch for trucks, tow and recovery vehicles and industrial use. It has a 3-stage planetary steel gearbox, an automatic brake and fits two common bolt patterns.

Specifications

• Rated line pull: 20,000 lbs (9072 kg)
• Motor: 24V series wound, 6.0 kW input
• Gear ratio: 430:1, 3-stage planetary steel
• Brake: automatic
• Steel cable: 12 mm x 26.5 m
• Drum: 89 x 217 mm
• Mounting bolt pattern: 254 x 114.3 mm or 254 x 165.1 mm (8 x M12)
• Dimensions: 620 x 214 x 290 mm
• Weight: 72 kg

Rated line pull is measured on the first rope layer on the drum. For safe use, keep the working load at about 80% of the rated pull.
