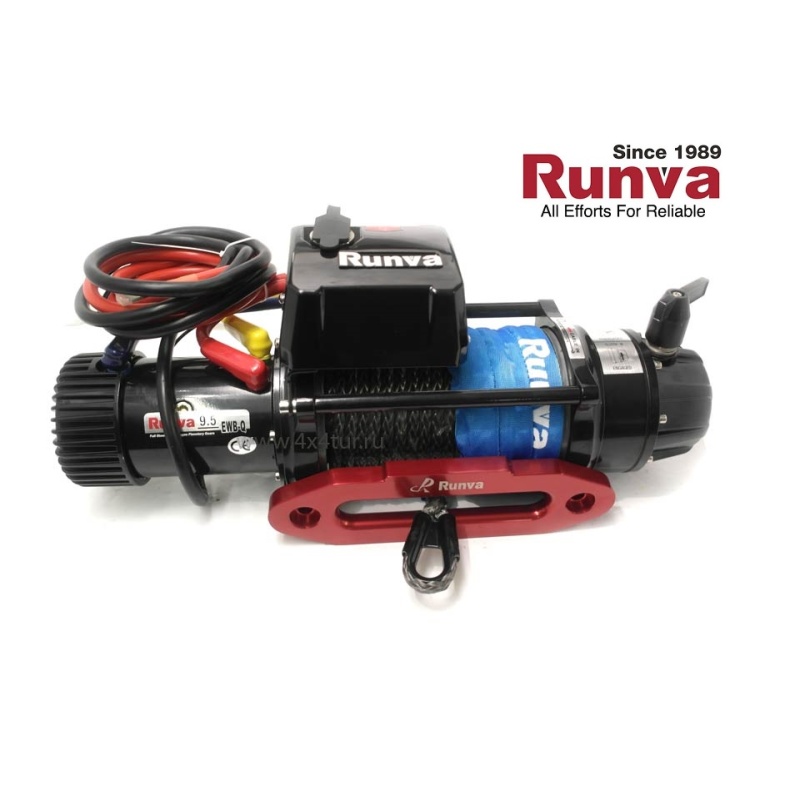

Runva EWB9.5 Black Edition electric winch 12V 9500 lbs with synthetic rope

Description

The Runva EWB9.5 Black Edition is a fast 12V electric winch with 9,500 lbs (4,309 kg) of line pull and a 10 mm Dyneema rope. Thanks to its 108:1 gearing, the Runva EWB9.5 reels in up to 9.8 m of rope per minute, so recoveries take less time.

Key features

• 9,500 lbs (4,309 kg) line pull: suits mid-size 4x4s, SUVs and lighter pickups
• Fast 108:1 gear ratio: up to 9.8 m/min line speed
• 12V 5.4 kW / 7.2 HP motor (input): strong power for its size
• 10 mm × 26 m Dyneema rope: lightweight, strong and safer than steel cable
• IP67 motor and gearbox: sealed against water and dust
• Integrated gearbox brake: holds the load securely
• Wireless and wired remote: operate the winch from a safe distance

Specifications

• Rated line pull: 9,500 lbs (4,309 kg)
• Voltage: 12V DC
• Max current draw: 450 A
• Motor: input 5.4 kW / 7.2 HP, output 2.7 kW / 3.6 HP
• Gear ratio: 108:1
• Max line speed: 9.8 m/min
• Rope: Dyneema, 10 mm × 26 m
• Drum: Ø63 × 223 mm
• Dimensions (L × W × H): 615 × 163 × 221 mm
• Mounting bolt pattern: 254 × 114.3 mm, 4 × M10
• Weight: 34 kg

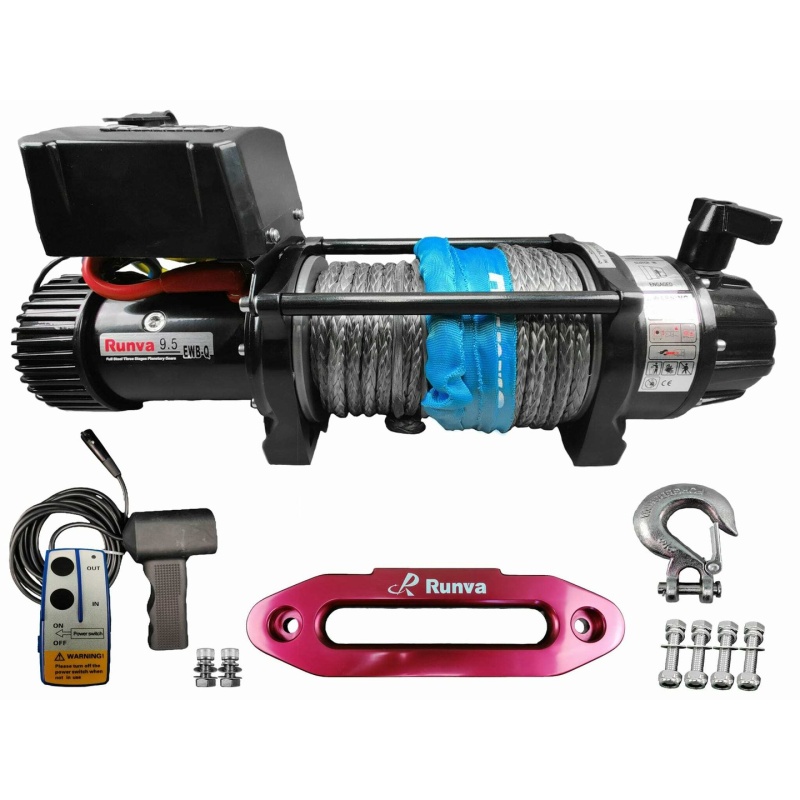

In the box

• Runva EWB9.5 Black Edition winch
• Dyneema rope 10 mm × 26 m
• Hook
• Aluminium fairlead
• Wireless remote
• Wired remote

Can be fitted with a pneumatic free-spool valve, available separately.
